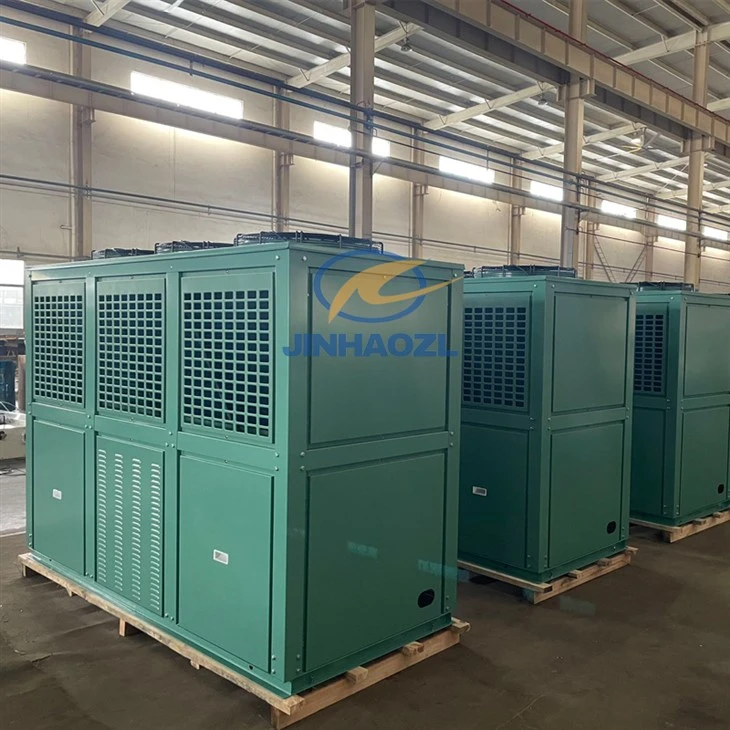

FNV lub thawv hom condenser|3 kiv cua sab saum toj tso tawm -} txias chav nyob

TusFNV lub thawv hom condenser nrog 3 - cov kiv cua tawmYog lub siab - Kev ua yeeb yam -}}}} txias condenser tsim rau cov tub yees thiab HVAC cov ntawv thov. Nrog nws lub thawv masterflow thiab cov condenser voltenser tau muab cov kev sib pauv zoo dua qub thiab txhim khu kev qha txawm tias tsis xav tau. Lub to {- kev hloov pauv kom muaj huab cua ncig ua si, minimizes kub cua recirculation, thiab tso cai hloov tau cov chaw kaw.

Engineered nrog cov thev naus laus zis siab dua thiab cov fnv condenser tau siv rau hauv chaw khaws khoom txias, thiab ua zaub mov tub yees.



---

Cov Nta Tseem Ceeb

Box - Hom Kev Tsim Kho- Coj nruj duab thiab tsim kev cog lus, yooj yim rau nruab thiab thauj.

3 Sab saum toj - cov kiv cua tawm- Muaj zog lub rotor axial cov kiv cua kom ua tau zoo vertiflow.

High - Kev Hloov Cua Sov Hloov- Optimized zoo nyiaj coils rau qhov ua kom txias tshaj plaws.

Cov Ntaub Ntawv Siv Cov Ntaub Ntawv- Galvanized los yog coated steel vaj tse nrog kev tiv thaiv xeb.

Tsis muaj suab nrov- Aerodynamically tsim cov kiv cua txo suab nrov thiab kev co.

Customizable Xaiv- muaj nrog cov khoom sib txawv ntawm cov ntaub ntawv sib txawv, ntxuam sib dhos, thiab cov tub yees txias sib xyaw (R5004A, R [1, R22, thiab lwm yam).



---

Cov Ntawv Thov

Txias cia khoom thiab chav sozer

Khoom Noj Thiab Dej Haus

Kws ua tub yees

Kev Lag Luam HVAC

Muaj Tej Txoj Haujlwm Txias



---

Qhov Zoo

Txuag Ntsug Ranflow- TOP {- Cov kiv cua tawm los tiv thaiv cov cua kub thiab txhim kho txias ua haujlwm.

Chaw - kev txuag- Compact Box qauv haum rau rooftop lossis thaj chaw teeb tsa tsawg.

Kev ua tau zoo- Tsim kom tsim kev lag luam tas mus li hauv cov kev mob siab rau qhov kub.

Zog - txuag- High {- Cov kiv cua kev ua tau zoo thiab ua kom zoo nkauj chev tsim kom muaj zog tau siv hluav taws xob.

Lub Neej Muaj Kev Pab Ntev- Sturdy tsev thiab kev tiv thaiv txheej txuas ntev nyob rau hauv ib puag ncig ib puag ncig.



---

Tag

TusFNV lub thawv hom condenser nrog 3 - cov kiv cua tawmPuas yog qhov kev daws teeb meem zoo tshaj plaws rau kev lag luam thiab ua lag luam tub yees uas xav tau kev ua haujlwm siab, chaw {{{{{{} kev tsim qauv, thiab txuag kev ua haujlwm. Nws cov qauv huab cua ua kom zoo thiab tsim kev nyab xeeb ua nws kom muaj ntau yam ntawm cov ntawv thov txias, ua, thiab HVAC cov ntawv thov.

👉 Tiv tauj peb rau hnub noTxhawm rau thov cov kev qhia tshwj xeeb, CAD cov duab kos, thiab cov Hoobkas sib tw - ncaj qha hais.



Tus qauv	Tshav kub ua kom muaj peev xwm (KW)	Thaj Chaw Tshav Kub Kub (M2)	Lub tshuab cua				Kev sib txuas yeeb nkab (hli)		Dimension (mm)
			Hwjchim (W)	Qhov dav	Huab cua txaus (m3 / h)	Fai fab hov ntau	Ntiv dej	Qhov hluav taws xob	A	B	C	D	E
FNVT-17.7 / 60	17.7	60	2*180	Φ400	6000	380	22	16	1090	800	1280	1060	530
FNVT-23.6 / 80	23.6	80	2*250	Φ450	9000	380	25	19	1300	800	1330	1270	530
FNVT-29.5 / 100	29.5	100	2*450	Φ500	12000	380	25	19	1340	850	1430	1310	580
FNVT-35.4 / 120	35.4	120	2*450	Φ500	12000	380	25	19	1340	850	1530	1310	580
FNVT-41.3 / 140	41.3	140	2*600	Φ550	16000	380	28	19	1520	900	1530	1490	630
FNVT-44.3 / 160	44.3	160	2*750	Φ600	20000	380	28	22	1720	950	1530	1690	680
Fnvt-47/180	47	180	2*750	Φ600	20000	380	28	22	1720	950	1630	1690	680
FNVT-52.5 / 200	52.5	200	2*800	Φ630	24000	380	28	22	1850	1000	1630	1820	730
FNVT-58.5 / 220	58.5	220	2*800	Φ630	24000	380	32	22	2000	1000	1630	1970	730
FNVT-64.5 / 240	64.5	240	3*600	Φ550	24000	380	32	22	2200	950	1630	2170	680
FNVT-70.5 / 260	70.5	260	3*750	Φ600	30000	380	32	22	2400	950	1630	2370	680
FNVT-76/280	76	280	3*750	Φ600	30000	380	35	28	2500	950	1630	2470	680
FNVT-82.5 / 300	82.5	300	3*800	Φ630	36000	380	35	28	2500	1000	1780	2470	730
FNVT-88.5 / 320	88.5	320	3*800	Φ630	36000	380	35	28	2650	1000	1780	2620	730
FNVT-97.3 / 360	97.3	360	3*800	Φ630	36000	380	42	28	2650	1100	1880	2620	830
Fnvt-112/400	112	400	4*750	Φ600	40000	380	42	28	3200	1000	1780	3170	730
FNVT-136/480	136	480	4*750	Φ630	48000	380	54	28	3500	1100	1880	3470	830



Tag
U Hom huab cua txias condenser muaj qhov sib npaug zoo kawg ntawm qhov loj me, ua haujlwm tau zoo, thiab kev ua haujlwm rau cov tshuab tub yees. Seb puas yog qhov kev teeb tsa tshiab lossis kev txhim kho hluav taws xob, nws muab kev txuag hluav taws xob txhim khu Tiv tauj peb rau hnub no kom tau txais cov ntaub ntawv kev ua haujlwm, kos duab, lossis kev cai rau koj cov haujlwm hauv tub yees.



Cov FAQ

---

Q1: Cov Ntawv Them Nqi uas koj tuaj yeem lees txais?

A: T / T, Western Union, Paypal thiab lwm yam. Peb lees txais ib lub sijhawm uas yooj yim thiab nrawm.

Q2: Koj muaj daim ntawv pov thawj twg?

A: ISO9001.

Q3: Koj puas muaj kev sim thiab kev ntsuas?

A: Yog, peb tuaj yeem pab kom tau txais daim ntawv tshaj tawm kev xeem ntawv rau cov khoom lag luam thiab cov chaw tshawb xyuas kev tshawb fawb hauv Hoobkas.

Q4: Koj qhov kev pabcuam shipping yog dab tsi?

A: Peb tuaj yeem muab cov kev pabcuam rau lub nkoj booking, cov khoom lag luam, kev tshaj tawm, xa cov ntaub ntawv npaj thiab xa khoom ntawm cov chaw nres nkoj thauj khoom.

Q5: Koj puas tuaj yeem muab kev pabcuam FBA?

A: Yog, peb muaj qhov kev paub zoo hauv kev muab kev pabcuam FBA Professivate.
